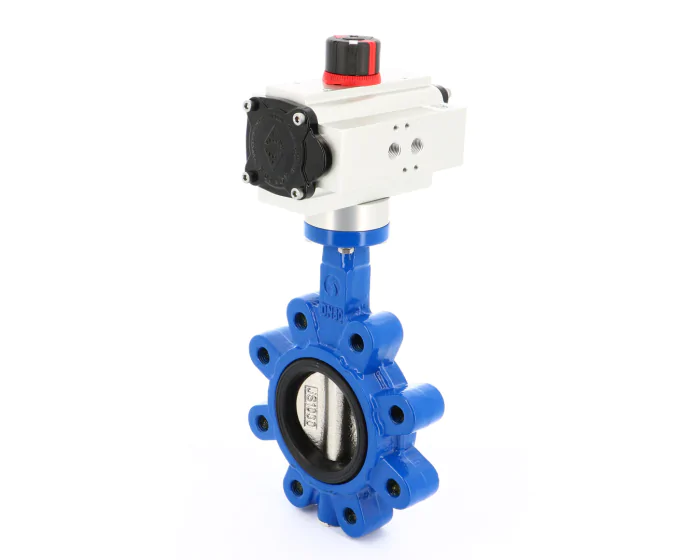

The 1133 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, up to DN300. It is a lug type, PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Seat | EPDM |
| Body material | Cast iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron Concentric DN40 - 1''1/2 Double acting | 262603015100 | S1003491 |
€179.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN40 - 1''1/2 Spring return | 262603016101 | S1003492 |
€211.07
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN50 - 2'' Double acting | 262604015100 | S1003493 |
€179.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN50 - 2'' Spring return | 262604016101 | S1003494 |
€211.14
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN65 - 2''1/2 Double acting | 262605015101 | S1003495 |
€204.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN65 - 2''1/2 Spring return | 262605016102 | S1003496 |
€248.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN80 - 3'' Double acting | 262606015101 | S1003497 |
€211.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN80 - 3'' Spring return | 262606016102 | S1003498 |
€256.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN100 - 4'' Double acting | 262607015102 | S1003499 |
€253.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN100 - 4'' Spring return | 262607016103 | S1003500 |
€303.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN125 - 5'' Double acting | 262608015102 | S1003501 |
€293.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN125 - 5'' Spring return | 262608016104 | S1003502 |
€377.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN150 - 6'' Double acting | 262609015103 | S1003503 |
€366.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN150 - 6'' Spring return | 262609016105 | S1003504 |
€514.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN200 - 8'' Double acting | 262610015104 | S1003505 |
€545.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric DN200 - 8'' Spring return | 262610016106 | S1003506 |
€740.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric Spring return DN250 - 10'' | 262611016107 | S1003507 |
€1,330.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Concentric Double acting DN300 - 12'' | 262612015106 | S1003508 |
€1,149.20
(excl. btw)
|
add to cart |
